Description

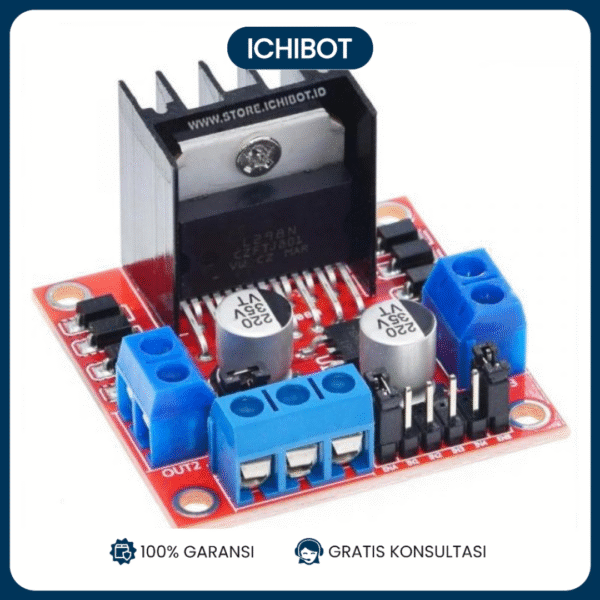

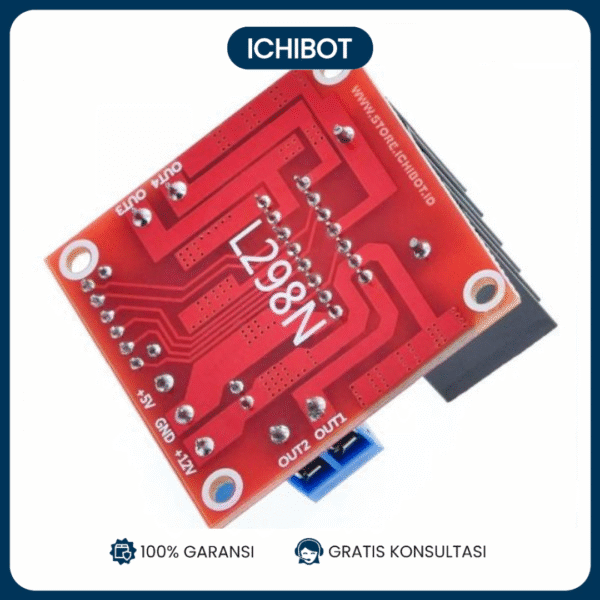

The module, with the L298N as controller, is a double H-bridge motor driver with little heat production and interference. The module can even handle a peak voltage of 46v and a peak current of 3A. This module can control up to 2A with a power of 25w. With this a 2-phase stepper motor, a 4-phase stepper motor or two DC motors can be driven. The built-in 78M05 chip is powered by the driver voltage, so when the driver voltage rises above 12V, an external 5V power supply must be connected. Properties:
- Double H bridge drive Chip: L298N (ST NEW)
- Digital voltage: 5V
- Driver voltage: 5V – 35V
- Logic consumption: 0mA – 36mA
- Driver current: 2A (MAX single bridge)
- Max power: 25W
If ENA enable
- IN1 IN2 control OUT1 OUT2
If ENB enable
- N3 IN4 control OUT3 OUT4
