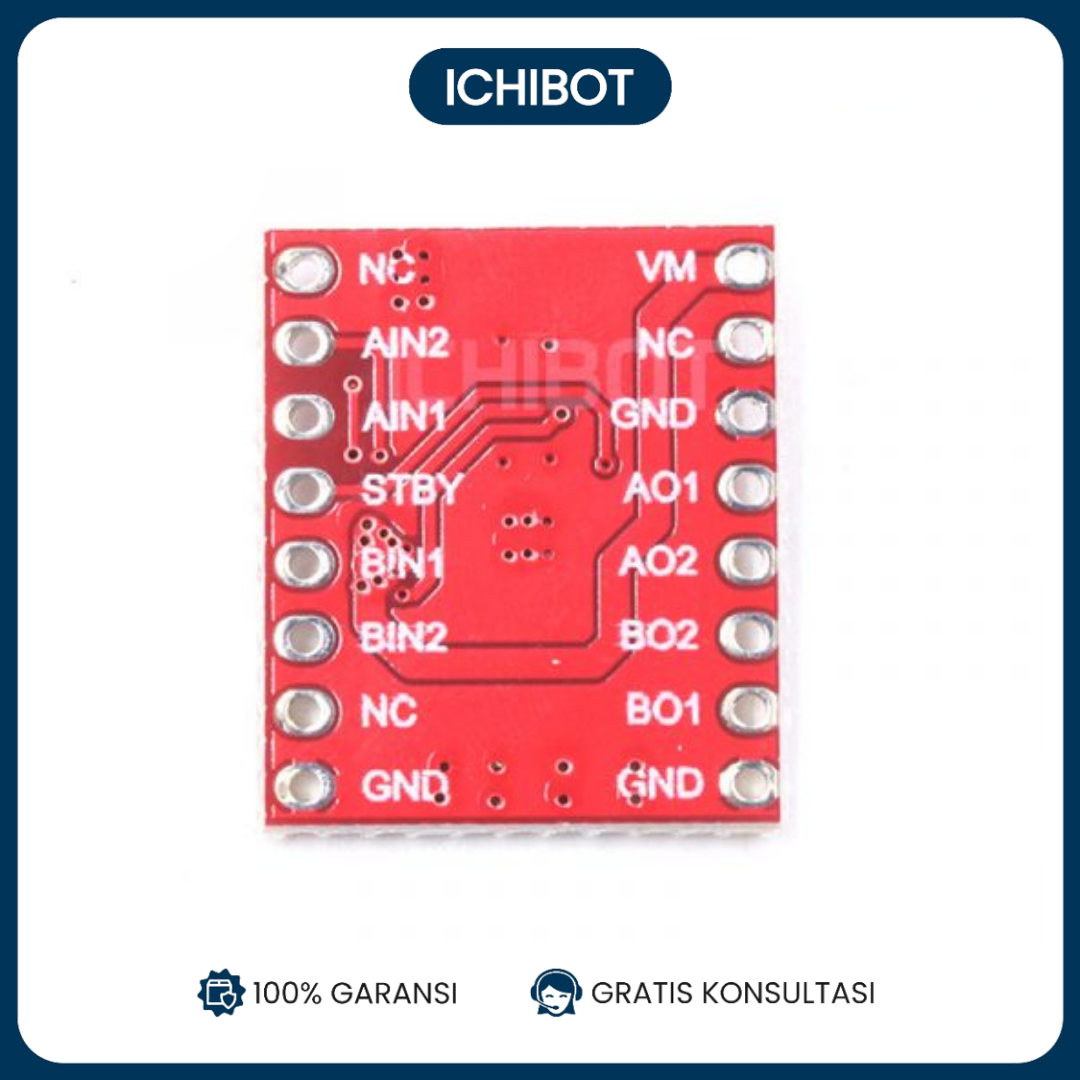

This DRV8833 dual H-bridge motor driver is the substitution of TB6612FNG Dual Channel Motor Driver. It can be used for bidirectional control of two brushed DC motors at 2.7 V to 10.8 V. It can supply up to about 1.2 A per channel continuously and can tolerate peak currents up to 2 A per channel for a few seconds, making it an ideal driver for small motors that run on relatively low voltages. The board ships populated with SMD components, including the DRV8833, and adds a FET for reverse battery protection.
This board is very similar to our DRV8835 dual motor driver carrier in operating voltage range and continuous current rating, but the DRV8835 has a lower minimum operating voltage, offers an extra control interface mode, and is 0.1″ smaller in each dimension; we also carry a DRV8835 dual motor driver shield that is easy to use with an Arduino. The DRV8833 has a higher peak current rating (2 A per channel vs 1.5 A), optional built-in current-limiting, and no need for externally supplied logic voltage.
Features:
- Dual-H-bridge motor driver: can drive two DC motors or one bipolar stepper motor;
- Operating voltage: 2.7 V to 10.8 V;
- Output current: 1.2 A continuous (2 A peak) per motor;
- Motor outputs can be paralleled to deliver 2.4 A continuous (4 A peak) to a single motor;
- Inputs are 3V- and 5V-compatible;
- Under-voltage lockout and protection against over-current and over-temperature;
- Reverse-voltage protection circuit;
- Current limiting can be enabled by adding sense resistors (not included).
