Description

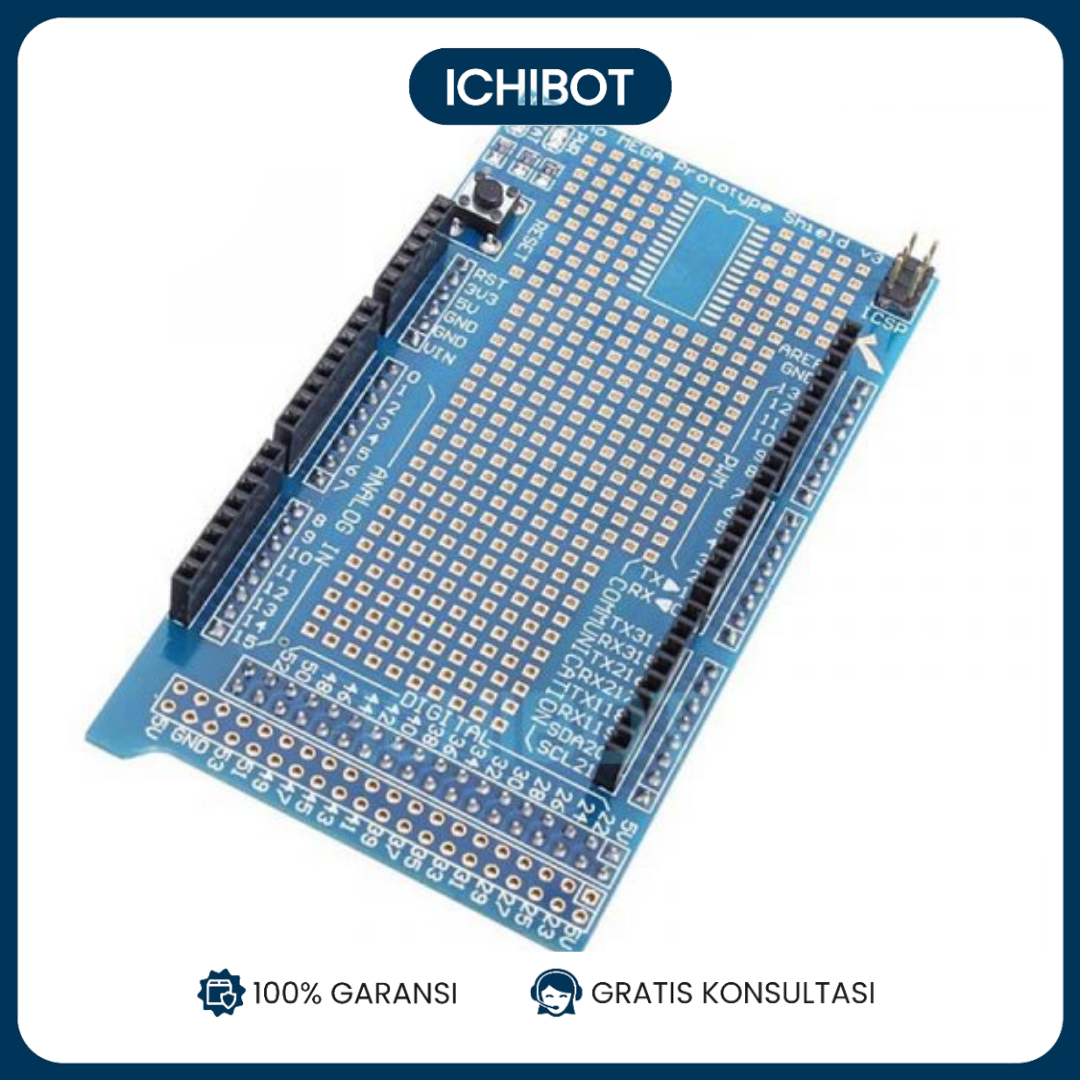

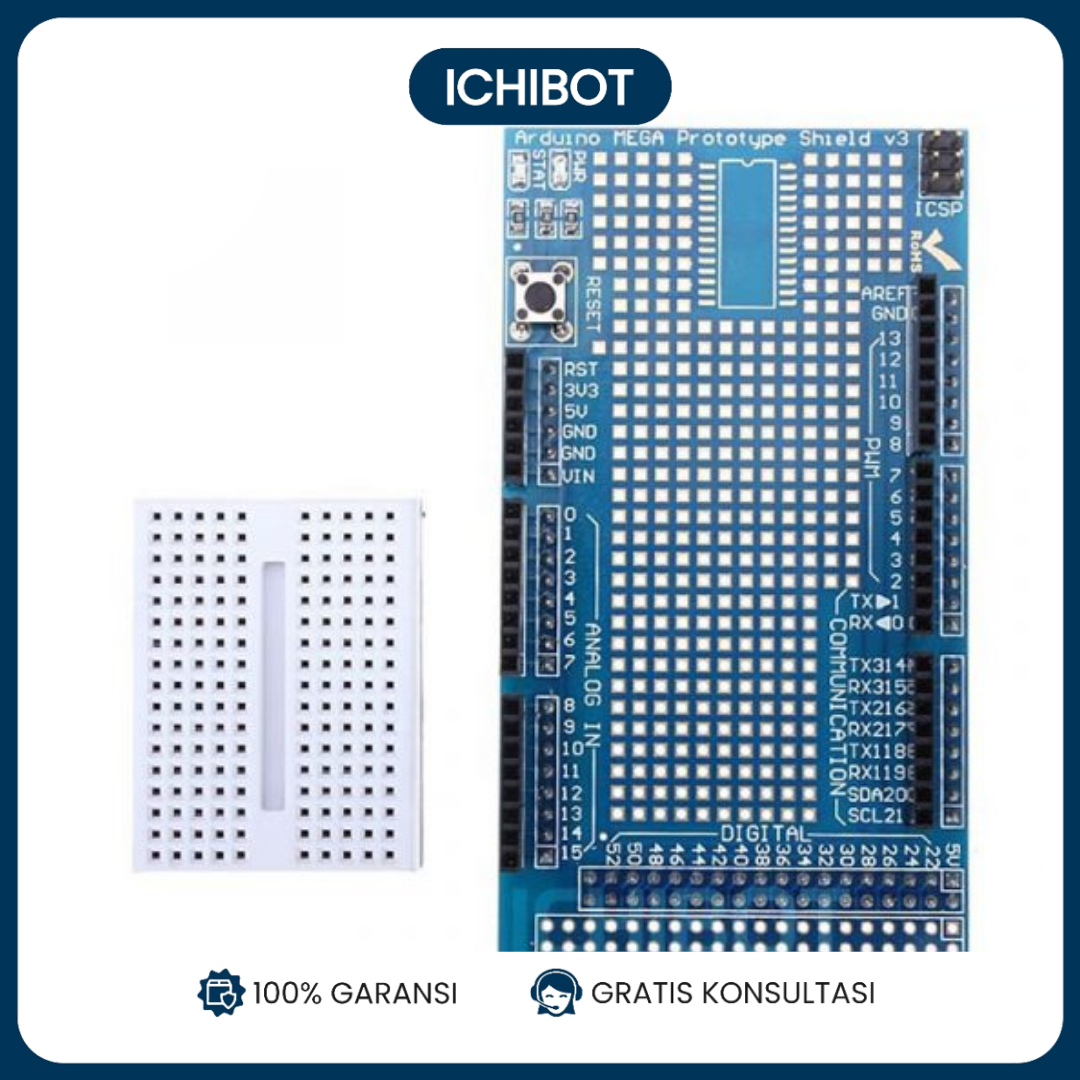

The board can not only receive MEGA seamless plug controller, directly soldered to the above components to complete a variety of prototype circuit, you can paste Mini bread board, through the 7-color jumper to complete a variety of circuit experiment , board integrated power indicator and status lights, and reset buttons, easy to learn MEGA preferred prototype controller expansion board.
Technical Specifications
- 1. Arduino MEGA / MEGA2560 ProtoShield prototype expansion board with Immersion Gold PCB processing technology, motherboards, small gold square pad spacing, welding components easier.
- 2.SOP28 SMD component package to be more handy Arduino electronics enthusiasts will not be directly insert bound components.
- 3. The board can receive Arduino MEGA / MEGA2560 seamless plug controller, directly soldered to the above components to complete a variety of prototype circuit, you can paste Mini bread board, through the 7-color jumper to complete a variety of circuit experiment , board integrated power indicator and status lights, and reset buttons, easy to learn Arduino MEGA / MEGA2560 preferred prototype controller expansion board.
- 4. Full Compatible with Arduino Mega ATmega1280 / MEGA2560.
- 5. High sensitivity with integrated low-noise RF input amplifier.
Feature
Wide prototyping area
Seamlessly plugged into the Arduino MEGA
Arduino pinout
Reset button
Indicator of power and status
Solder components directly
ICSP connector
14 pin SMD footprint (50 mils pitch)
20 pin Through Hole footprint (100 mils pitch)
