Modul Solid State Relay SSR 4Ch 4 Channel – Aktif Low

Description

Description:

• Working Voltage: 5V DC (160mA)
• Channel: 4 channel

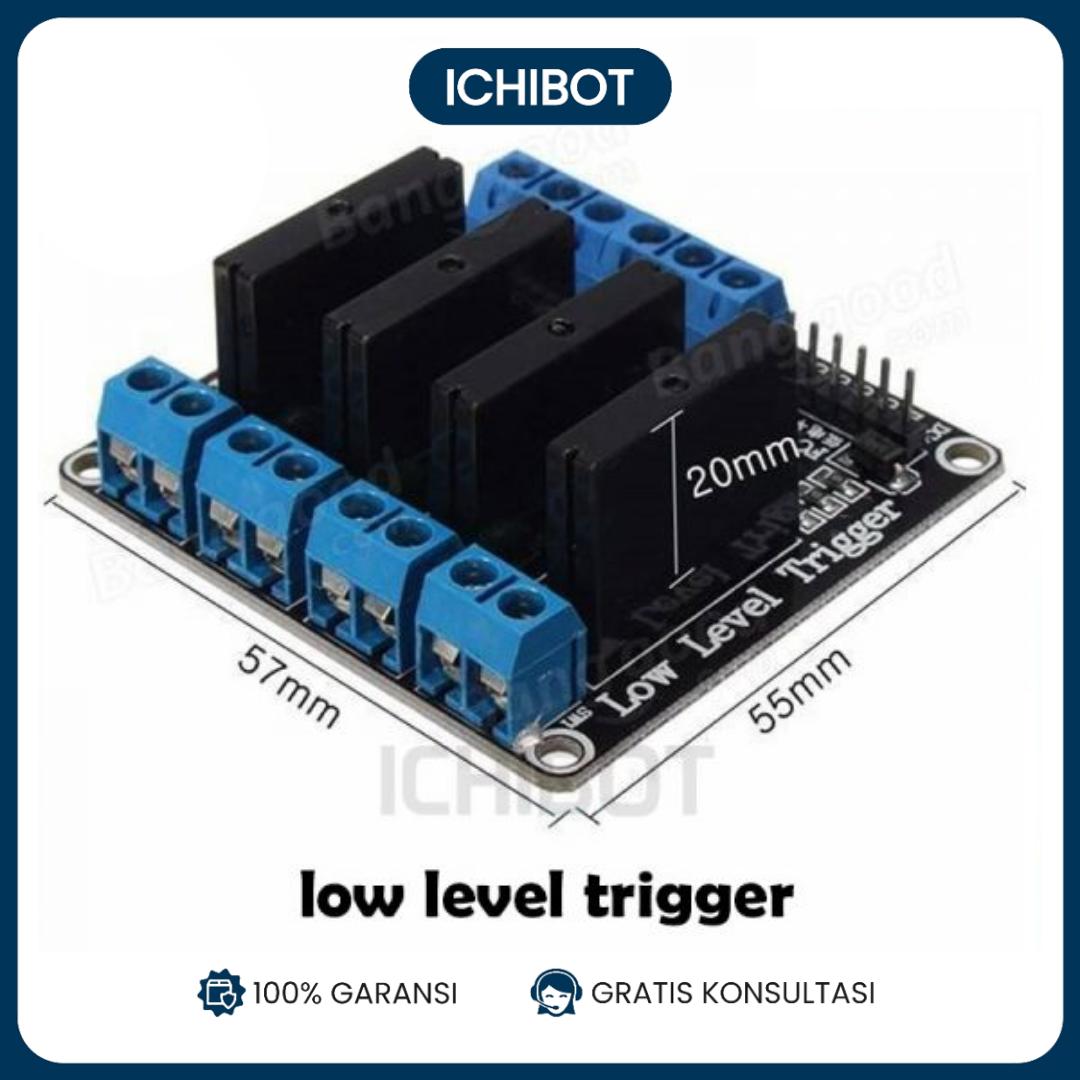

• Size: Approx.57 * 55 * 25mm / 2.2 * 2.2 * 1.0in
• Weight: Approx.40g / 1.4oz

Input control signal voltage:

• (0-2.5V state low relay OFF)
• (3.3-5V state high relay ON)
• Voltage Current: 1-Channel 13.8mA / 2-Channel 26.8mA / 3-Channel 37mA /  4-Channel 48mA
• Trigger Voltage:3.3-5V
• Trigger Current:2mA
• Quiescent Current:0mA

Module interface:

• DC+: Connect to positive power source (by relay voltage power supply)
• DC-: Connect to negative power source
• CH1: 1 relay module signal to trigger the end (effective at high level)
• CH2: 2-channel relay module signal to trigger the end (effective at high level)
• CH3: 3 relay module signal to trigger the end (effective at high level)
• CH4: 4-channel relay module signal to trigger the end (effective at high level)
